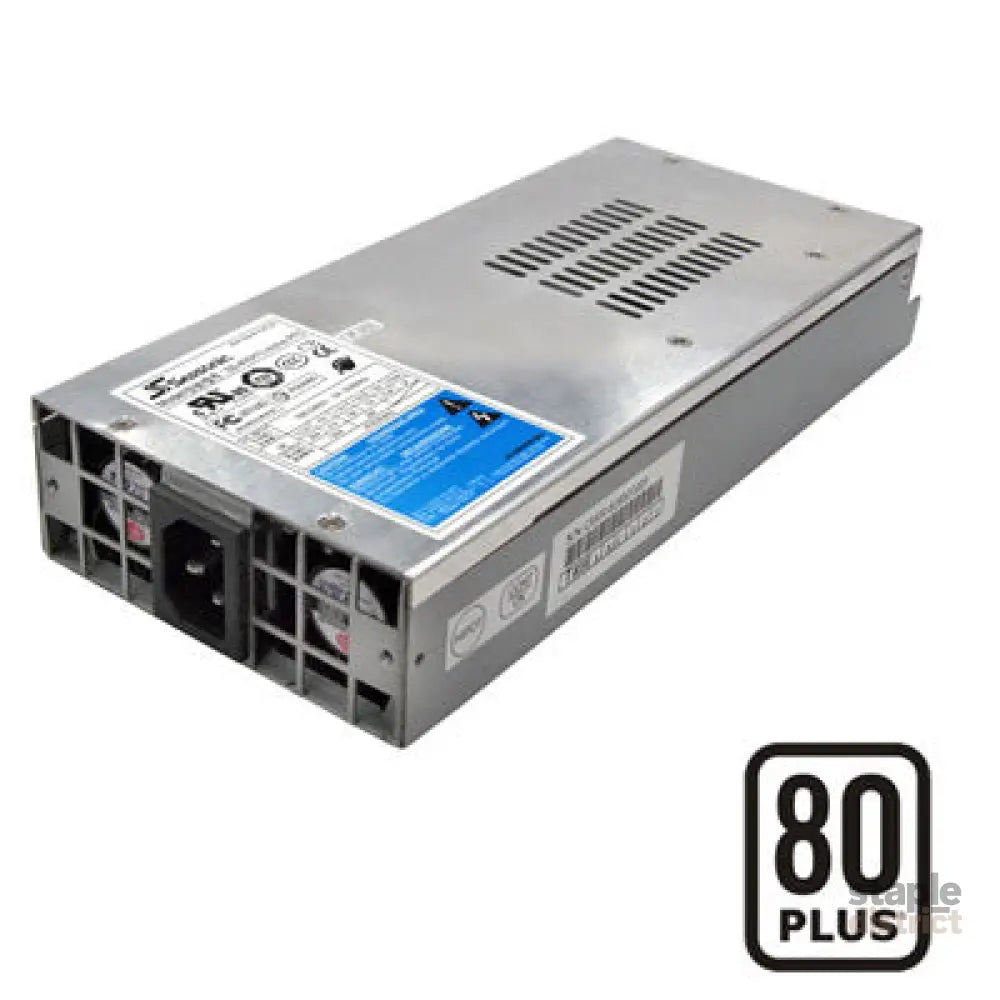

SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)

Description

Features:
- Specification compliance: Intel EPS12V
- Forward converter circuit
- High efficiency and reliability for industrial level
- Easy swap connector design
- High reliability ball bearing fan
- Low ripple & noise
- Smart & Silent Fan Control (S2FC)
- Zero minimum load on 3.3V rail
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards

Dimension: L235 x W100 x H40mm (9.3 x 3.9 x 1.6 )

Fan type: 38 x 38mm

Electrical Specifications:
- Input frequency: 50 / 60 Hz
- Inrush current, cold start: 100A max.
- Efficiency, 220-240VAC, full load: 83% typical
- Efficiency, 100-120VAC, full load: 80% typical
- Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
- Dielectric withstand, input to output: 1800VAC, 1sec.
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise: 1%
- MTBF, full load: >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC, BSMI
EMC: CE, FCC, C-tick

Package contents:

V28-PSUSEA400H1U80PV28-PSUSEA400H1U80P

1x SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)

SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)

Product form

Features:- Specification compliance: Intel EPS12V- Forward converter circuit- High efficiency and reliability for industrial level- Easy swap connector design- High... Read more

$327.95  $298.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 06, 2026 23:59:00 +1000
    • Free shipping on all orders above $39

    Description

    Features:
    - Specification compliance: Intel EPS12V
    - Forward converter circuit
    - High efficiency and reliability for industrial level
    - Easy swap connector design
    - High reliability ball bearing fan
    - Low ripple & noise
    - Smart & Silent Fan Control (S2FC)
    - Zero minimum load on 3.3V rail
    - Short circuit protection on all outputs
    - Over voltage protection
    - Over power protection
    - 100% hi-pot test
    - 100% burn in, high temperature cycled on/off
    - PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards

    Dimension: L235 x W100 x H40mm (9.3 x 3.9 x 1.6 )

    Fan type: 38 x 38mm

    Electrical Specifications:
    - Input frequency: 50 / 60 Hz
    - Inrush current, cold start: 100A max.
    - Efficiency, 220-240VAC, full load: 83% typical
    - Efficiency, 100-120VAC, full load: 80% typical
    - Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
    - Dielectric withstand, input to output: 1800VAC, 1sec.
    - Line regulation: +/-1% typical
    - Load regulation: +/-5% typical
    - Cross regulation: +/-5% typical
    - Ripple / noise: 1%
    - MTBF, full load: >100K hours (Excluding the DC fan)
    - Power Factor Correction: Active PFC 99% typical
    Safety: CUL, TUV, CB, CCC, BSMI
    EMC: CE, FCC, C-tick

    Package contents:

    V28-PSUSEA400H1U80PV28-PSUSEA400H1U80P

    1x SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)
