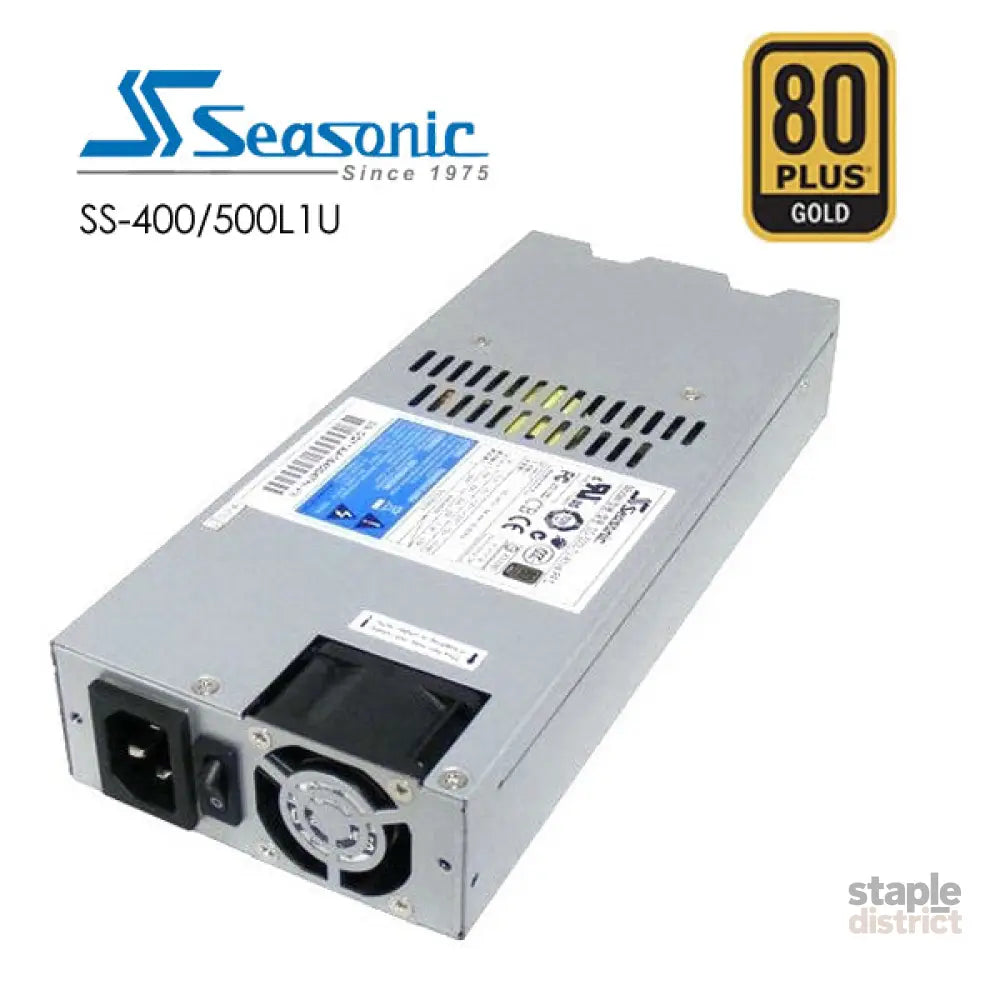

SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

Description

Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC

Features:

Specification compliance: Intel EPS 12V

DC to DC converter design

High efficiency and reliability

Low THD

Low ripple & noise

Super low noise fan control

Short circuit protection on all outputs

Over voltage protection

Over power protection

100% hi-pot test

100% burn in, high temperature cycled on/off

DC Outputs:

Model: SS-500L1U Active PFC

DC Outputs:

+3.3V

+5V

+12V(Combined)

-12V

+5Vsb

20A

20A

40A

0.3A

2.5A

100W*

480W

3.6W

12.5W
(Remarks: * Combined +3.3VDC & +5V DC maximum power)

Total Power: 500W

Input Type: Full range

Electrical Specifications:

Input frequency: 47/63 Hz

Inrush current, cold start: 100A max.

Efficiency, at normal input voltage: > 87%

Line regulation: +/-1% typical

Load regulation: +/-5% typical

Cross regulation: +/-5% typical

Ripple / noise: 1%

MTBF, full load: >100K hours (Excluding the DC fan)

Power Factor Correction: Active PFC 99% typical

Certifications:

Satety: CUL, UV, CB

EMC: CE, Fcc, C-Tick

Specifications:

Dimension: L235 x W100 x H40mm

Connectors: Customized modular cables

Package contents:

V28-PSUSEA500L1U80GV28-PSUSEA500L1U80G

1x SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

Product form

Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC Features: Specification compliance: Intel EPS 12V DC to DC... Read more

$430.95  $372.99

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 06, 2026 23:59:00 +1000
    • Free shipping on all orders above $39

    Description

    Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC

    Features:

    Specification compliance: Intel EPS 12V

    DC to DC converter design

    High efficiency and reliability

    Low THD

    Low ripple & noise

    Super low noise fan control

    Short circuit protection on all outputs

    Over voltage protection

    Over power protection

    100% hi-pot test

    100% burn in, high temperature cycled on/off

    DC Outputs:

    Model: SS-500L1U Active PFC

    DC Outputs:

    +3.3V

    +5V

    +12V(Combined)

    -12V

    +5Vsb

    20A

    20A

    40A

    0.3A

    2.5A

    100W*

    480W

    3.6W

    12.5W
    (Remarks: * Combined +3.3VDC & +5V DC maximum power)

    Total Power: 500W

    Input Type: Full range

    Electrical Specifications:

    Input frequency: 47/63 Hz

    Inrush current, cold start: 100A max.

    Efficiency, at normal input voltage: > 87%

    Line regulation: +/-1% typical

    Load regulation: +/-5% typical

    Cross regulation: +/-5% typical

    Ripple / noise: 1%

    MTBF, full load: >100K hours (Excluding the DC fan)

    Power Factor Correction: Active PFC 99% typical

    Certifications:

    Satety: CUL, UV, CB

    EMC: CE, Fcc, C-Tick

    Specifications:

    Dimension: L235 x W100 x H40mm

    Connectors: Customized modular cables

    Package contents:

    V28-PSUSEA500L1U80GV28-PSUSEA500L1U80G

    1x SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)
