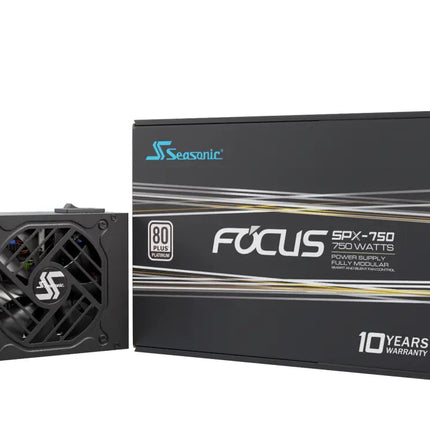

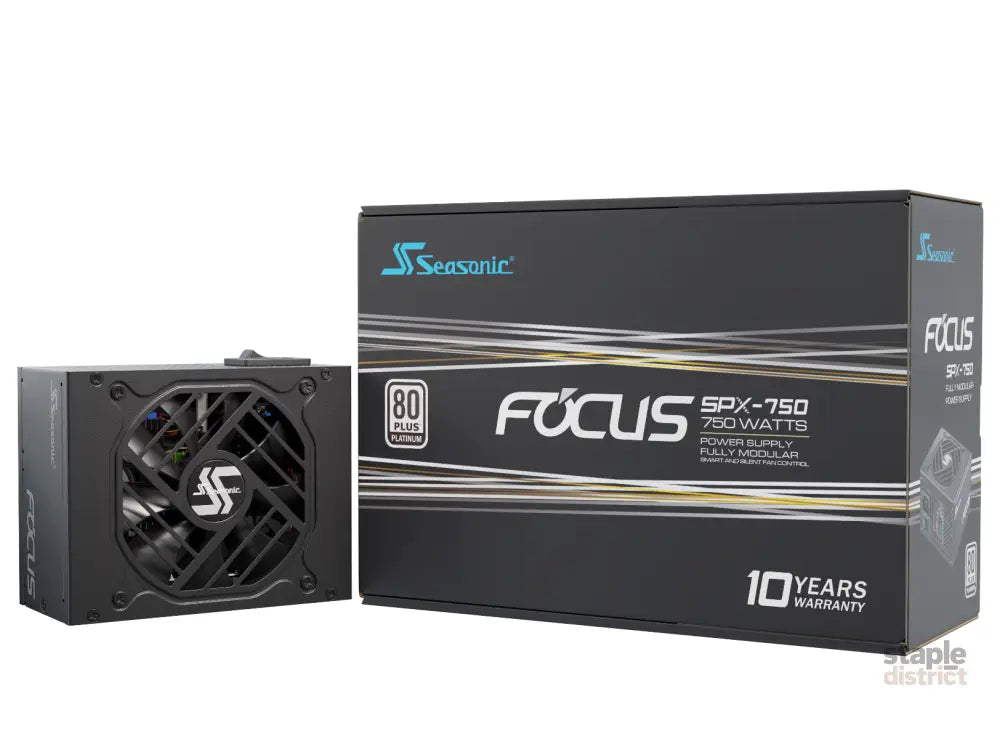

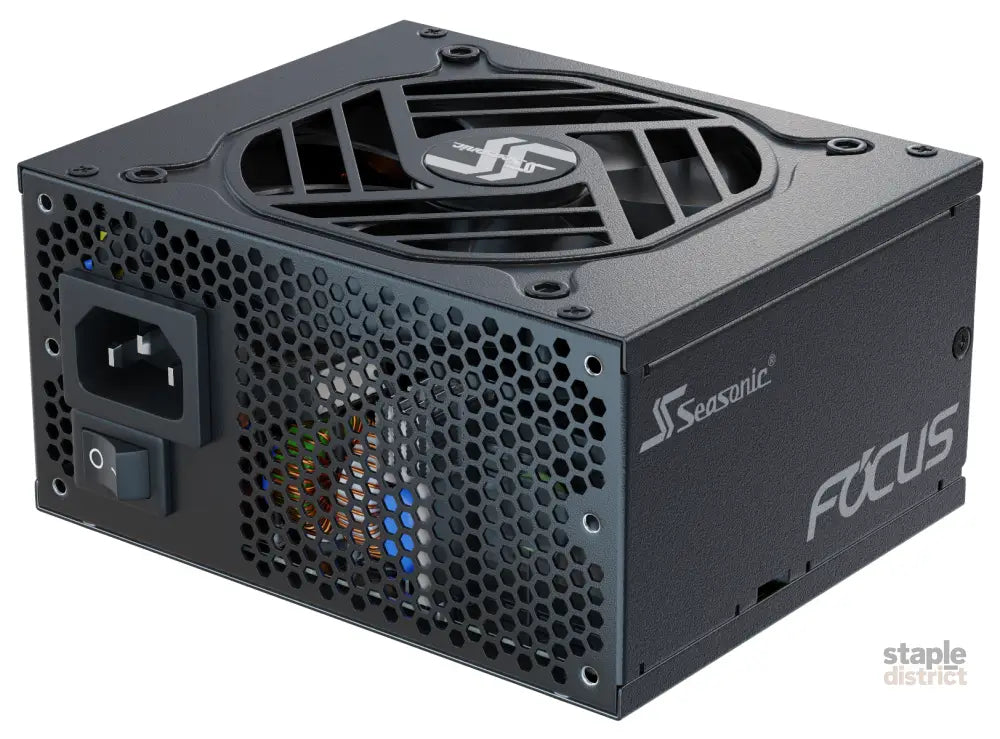

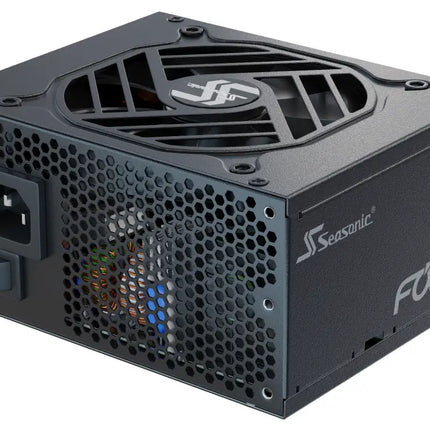

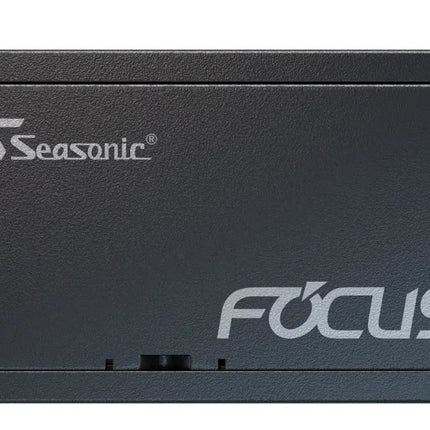

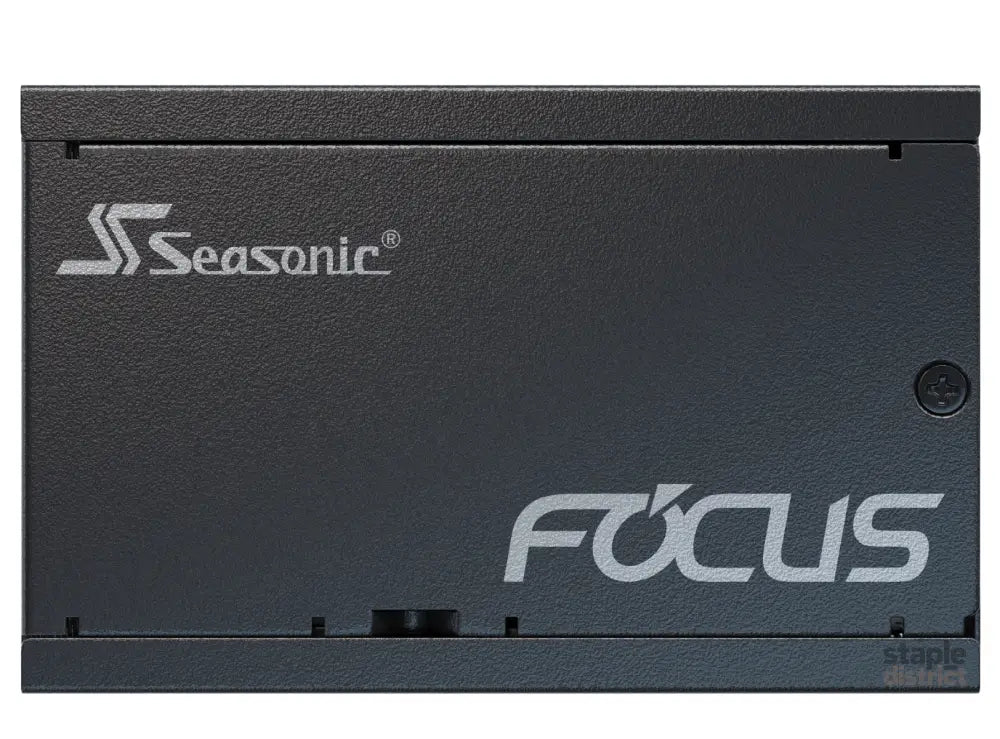

Seasonic FOCUS SPX-750 750W Fully Modular PSU

Description

FEATURE SUMMARY
  • 80 PLUS® Platinum certified
  • Compact SFX Size - 125 (L) x 100 (W) x 63.5 (H) mm
  • Tight Voltage Regulation
  • Cable-free Connection Design
  • S3FC - Fanless until 30 % load

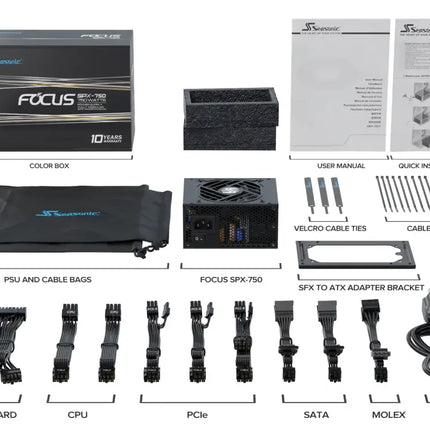

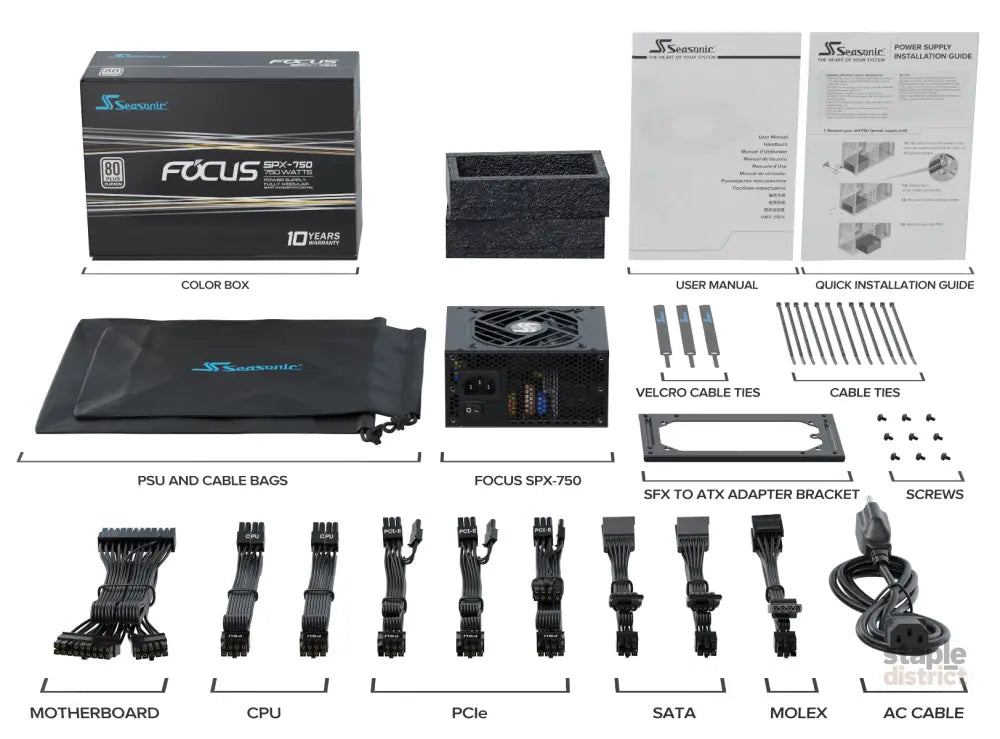

  • SFX to ATX Expandability

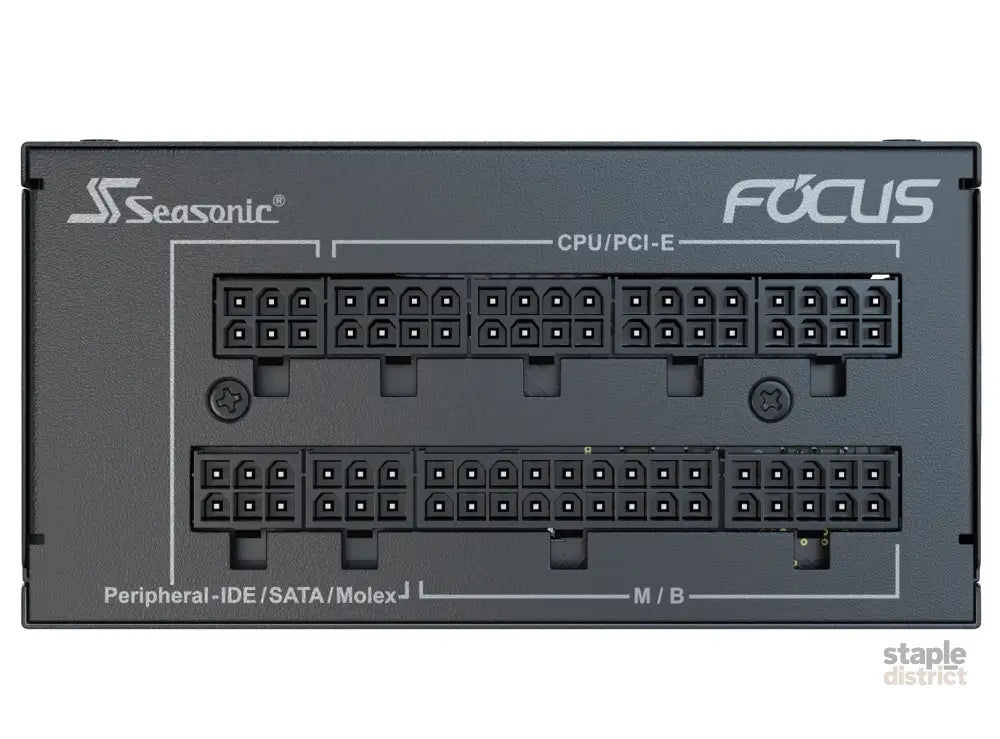

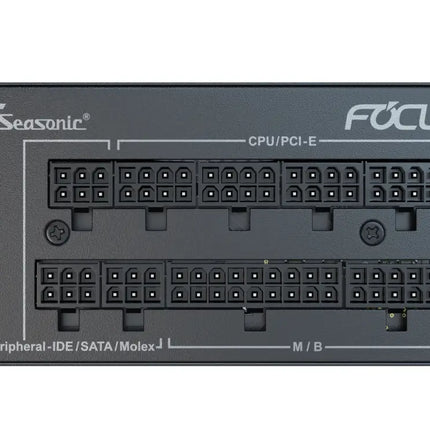

  • Gold plated connectors


    • Technical Specifications
    80PLUS® Platinum
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel SFX 12 V / ATX 12 V
    Dimensions 100 mm (L) x 125 mm (W) x 63.5 mm (H)
    Fan Information Fan Size 92 mm
    Fan Control Premium Hybrid Fan Control
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
    Cable Information Modularity Fully Modular
    Cable type Flat black cables
    Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan 100,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 10 Years

    V28-PSUSEAFOCUS750SPXV28-PSUSEAFOCUS750SPX
    Power Output
    AC Input Voltage: 100 V - 240 V
    Current: 10 - 5 A
    Frequency: 50 Hz - 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 20 A 20 A 62 A 0.3 A 3 A
    100 W 744 W 3.6 W 15 W
    Total Continuous Power 750 W

    Seasonic FOCUS SPX-750 750W Fully Modular PSU

    Product form

    FEATURE SUMMARY80 PLUS® Platinum certifiedCompact SFX Size - 125 (L) x 100 (W) x 63.5 (H) mm Tight Voltage Regulation... Read more

    $514.95  $445.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Shipped today? Order within: Jun 06, 2026 23:59:00 +1000
      • Free shipping on all orders above $39

      Description

      FEATURE SUMMARY
    • 80 PLUS® Platinum certified
    • Compact SFX Size - 125 (L) x 100 (W) x 63.5 (H) mm
    • Tight Voltage Regulation
    • Cable-free Connection Design
    • S3FC - Fanless until 30 % load
    • SFX to ATX Expandability
    • Gold plated connectors


      • Technical Specifications
      80PLUS® Platinum
      Cybenetics Efficiency Level TBA
      Cybenetics Noise Level TBA
      Form Factor Intel SFX 12 V / ATX 12 V
      Dimensions 100 mm (L) x 125 mm (W) x 63.5 mm (H)
      Fan Information Fan Size 92 mm
      Fan Control Premium Hybrid Fan Control
      Fan Bearing Fluid Dynamic Bearing
      Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
      Cable Information Modularity Fully Modular
      Cable type Flat black cables
      Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
      MTBF @ 25 °C, excl. fan 100,000 hours
      AC Input Full Range
      Protection OPP, OVP, UVP, OCP, OTP, SCP
      Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
      Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
      Warranty 10 Years

      V28-PSUSEAFOCUS750SPXV28-PSUSEAFOCUS750SPX
      Power Output
      AC Input Voltage: 100 V - 240 V
      Current: 10 - 5 A
      Frequency: 50 Hz - 60 Hz
      DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
      Maximum Power 20 A 20 A 62 A 0.3 A 3 A
      100 W 744 W 3.6 W 15 W
      Total Continuous Power 750 W
