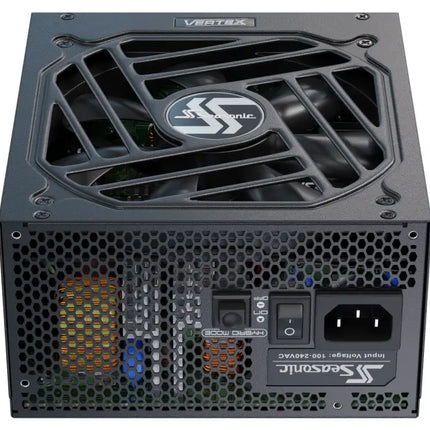

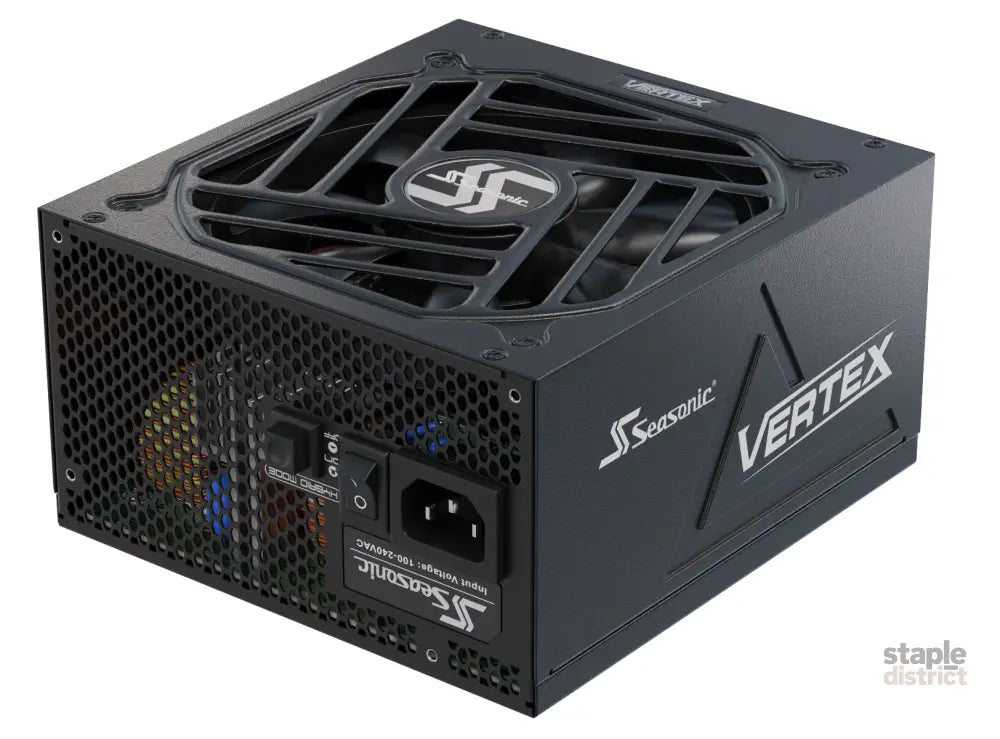

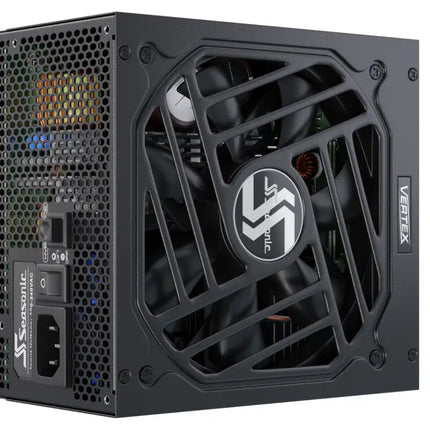

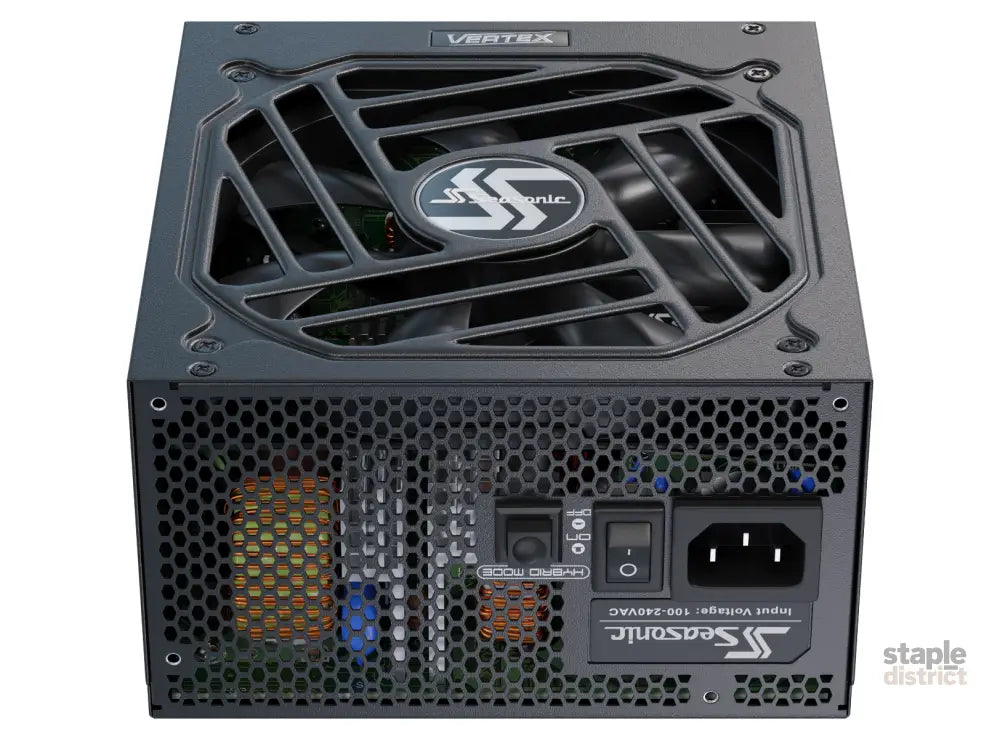

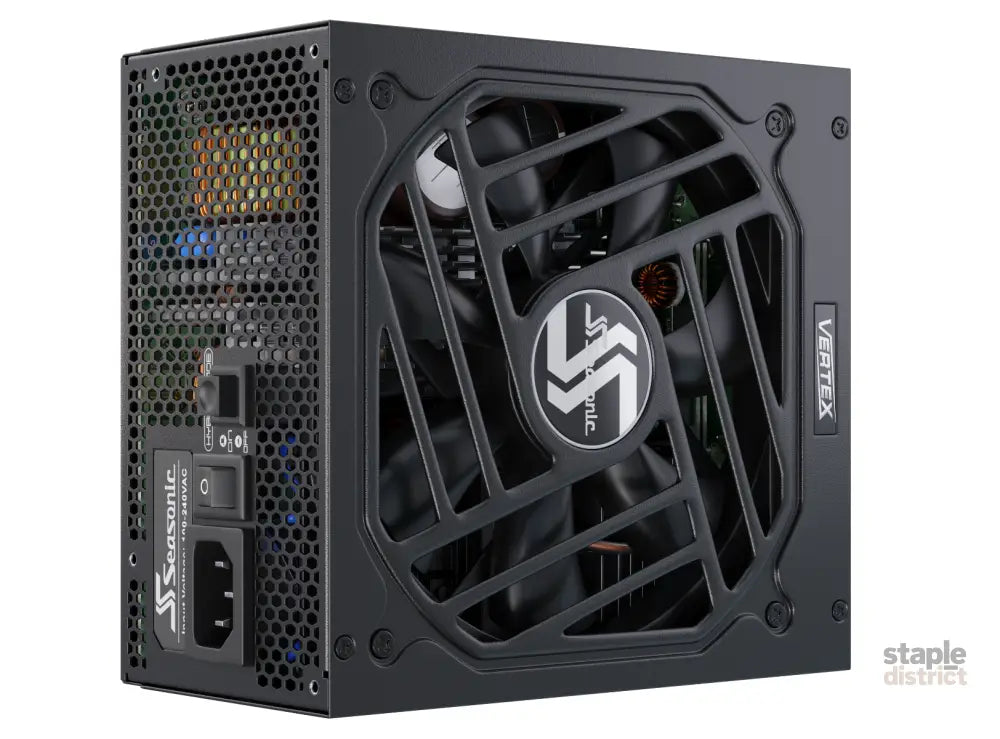

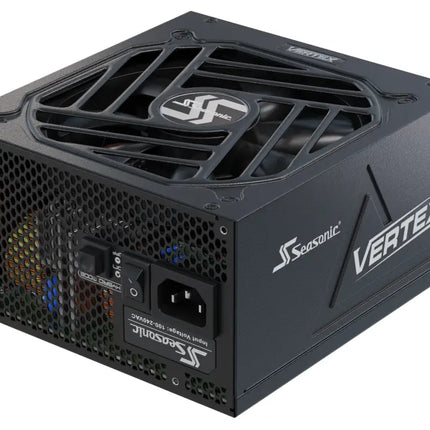

Seasonic VERTEX 850W (GX-850) 80 PLUS Gold Modular PSU

Description

FEATURES
  • Super-High Efficiency, 80 PLUS® Platinum Certified

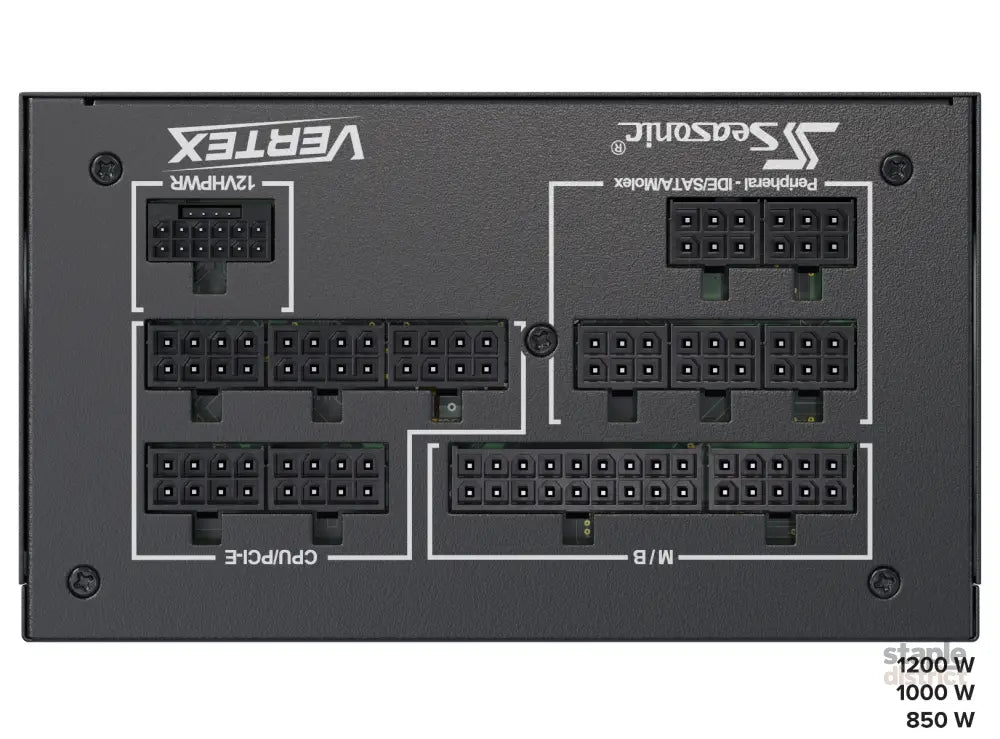

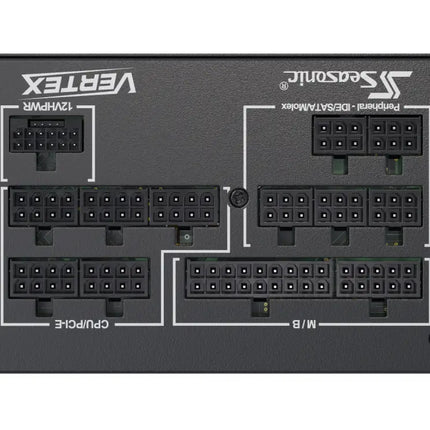

  • Fully Modular
  • ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
  • Top-Quality 135 mm Fluid Dynamic Bearing Fan
  • Premium Hybrid Fan Control
  • Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
  • Gold Plated High Current Terminal (MB, CPU and PCIe)

    • SPECIFICATIONS

    Technical Specifications

    80PLUS ®

    Gold

    Cybenetics Efficiency Level

    TBA

    Cybenetics Noise Level

    TBA

    Form Factor

    Intel ATX 12 V

    Dimensions

    160 mm (L) x 150 mm (W) x 86 mm (H)

    Fan Information

    Fan Size

    135 mm

    Fan Control

    Premium Hybrid Fan Control

    Fan Bearing

    Fluid Dynamic Bearing

    Life Expectancy

    50,000 hours at 40 °C, 15 % - 65 % RH

    Cable Information

    Modularity

    Fully Modular

    Cable type

    Flat black cables

    Electrical Features

    Operating Temperature

    0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

    MTBF @ 25 °C, excl. fan

    150,000 hours

    AC Input

    Full Range

    Protection

    OPP, OVP, UVP, OCP, OTP, SCP

    Safety and Environmental

    Safety and EMC

    cTUVus, TUV, CB, CCC, BSMI, EAC, CE

    Environmental Compliance

    Energy Star, RoHS, WEEE, ErP Lot 6, REACH

    Warranty

    10 Years


    V28-PSUSEAVERTEX850GXV28-PSUSEAVERTEX850GX

    Power Output

    AC Input

    Voltage: 100 V - 240 V

    Current: 11 - 5.5 A

    Frequency: 50 Hz - 60 Hz

    DC Output

    Rail

    +3.3 V

    +5 V

    +12 V

    -12 V

    +5 VSB

    Maximum Power

    20 A

    20 A

    70 A

    0.3 A

    3 A

    125 W

    840 W

    3.6 W

    15 W

    Total continuous power

    850 W

    Seasonic VERTEX 850W (GX-850) 80 PLUS Gold Modular PSU

    Product form

    FEATURES Super-High Efficiency, 80 PLUS® Platinum Certified Fully Modular ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR) Top-Quality 135... Read more

    $457.95  $396.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Shipped today? Order within: Jun 06, 2026 23:59:00 +1000
      • Free shipping on all orders above $39

      Description

      FEATURES
    • Super-High Efficiency, 80 PLUS® Platinum Certified
    • Fully Modular
    • ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
    • Top-Quality 135 mm Fluid Dynamic Bearing Fan
    • Premium Hybrid Fan Control
    • Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
    • Gold Plated High Current Terminal (MB, CPU and PCIe)

      • SPECIFICATIONS

      Technical Specifications

      80PLUS ®

      Gold

      Cybenetics Efficiency Level

      TBA

      Cybenetics Noise Level

      TBA

      Form Factor

      Intel ATX 12 V

      Dimensions

      160 mm (L) x 150 mm (W) x 86 mm (H)

      Fan Information

      Fan Size

      135 mm

      Fan Control

      Premium Hybrid Fan Control

      Fan Bearing

      Fluid Dynamic Bearing

      Life Expectancy

      50,000 hours at 40 °C, 15 % - 65 % RH

      Cable Information

      Modularity

      Fully Modular

      Cable type

      Flat black cables

      Electrical Features

      Operating Temperature

      0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

      MTBF @ 25 °C, excl. fan

      150,000 hours

      AC Input

      Full Range

      Protection

      OPP, OVP, UVP, OCP, OTP, SCP

      Safety and Environmental

      Safety and EMC

      cTUVus, TUV, CB, CCC, BSMI, EAC, CE

      Environmental Compliance

      Energy Star, RoHS, WEEE, ErP Lot 6, REACH

      Warranty

      10 Years


      V28-PSUSEAVERTEX850GXV28-PSUSEAVERTEX850GX

      Power Output

      AC Input

      Voltage: 100 V - 240 V

      Current: 11 - 5.5 A

      Frequency: 50 Hz - 60 Hz

      DC Output

      Rail

      +3.3 V

      +5 V

      +12 V

      -12 V

      +5 VSB

      Maximum Power

      20 A

      20 A

      70 A

      0.3 A

      3 A

      125 W

      840 W

      3.6 W

      15 W

      Total continuous power

      850 W
