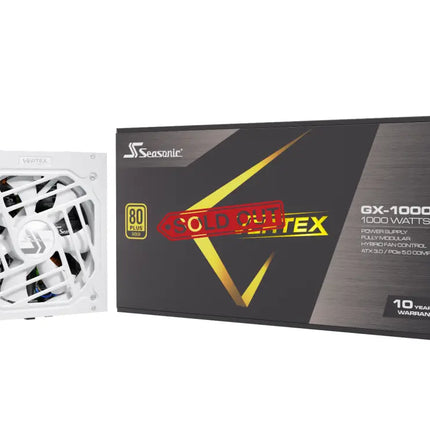

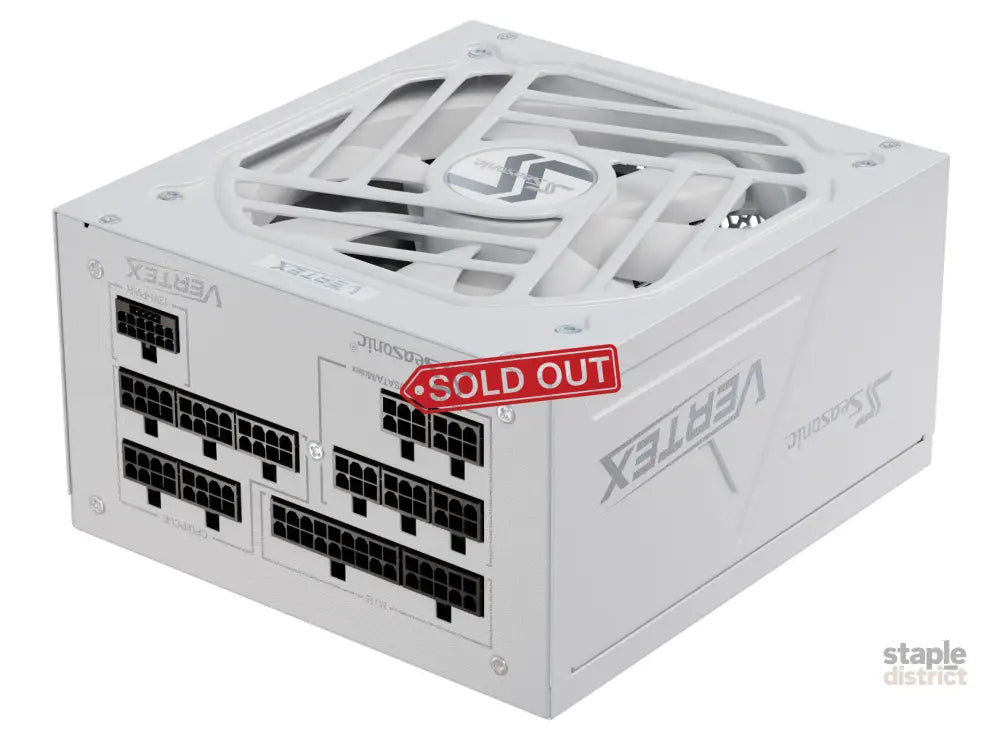

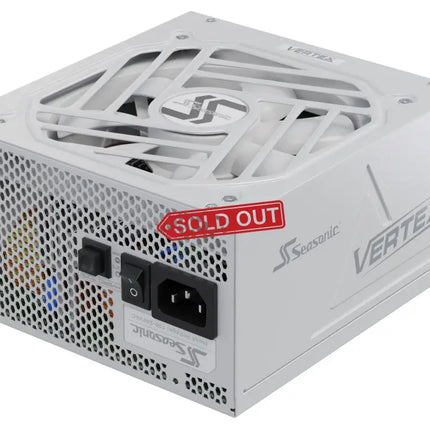

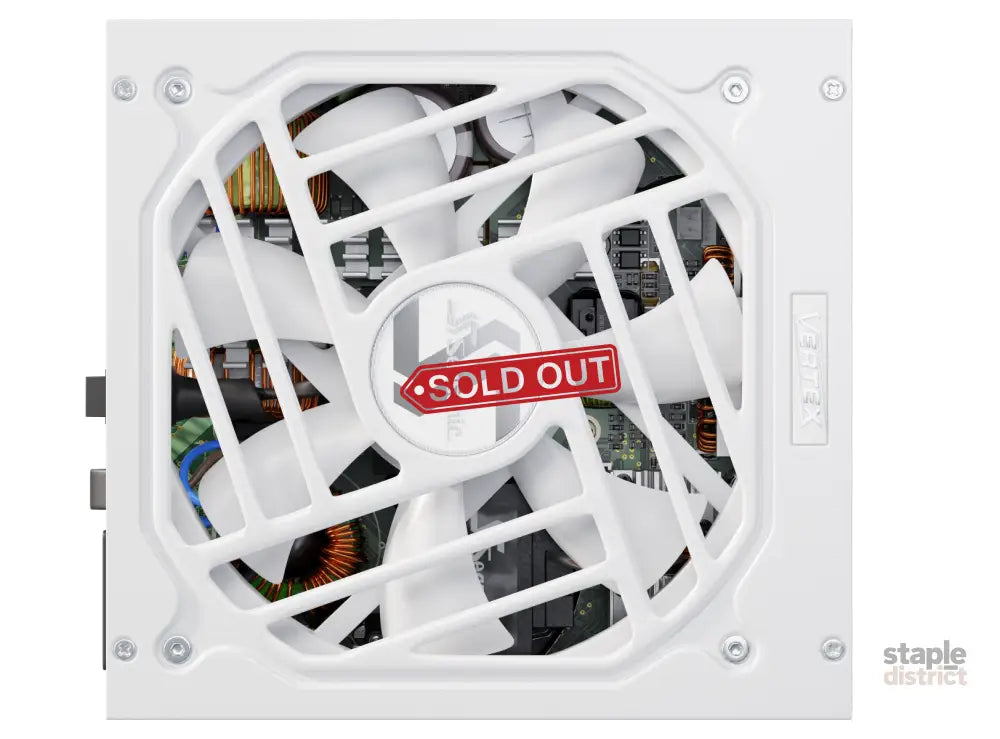

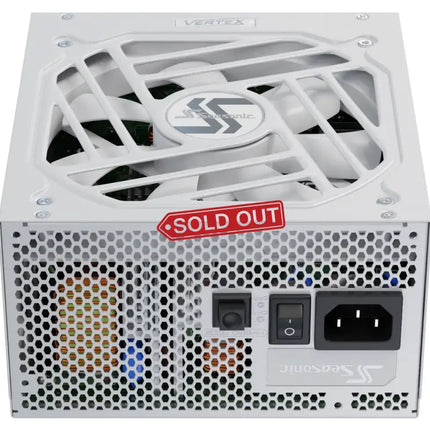

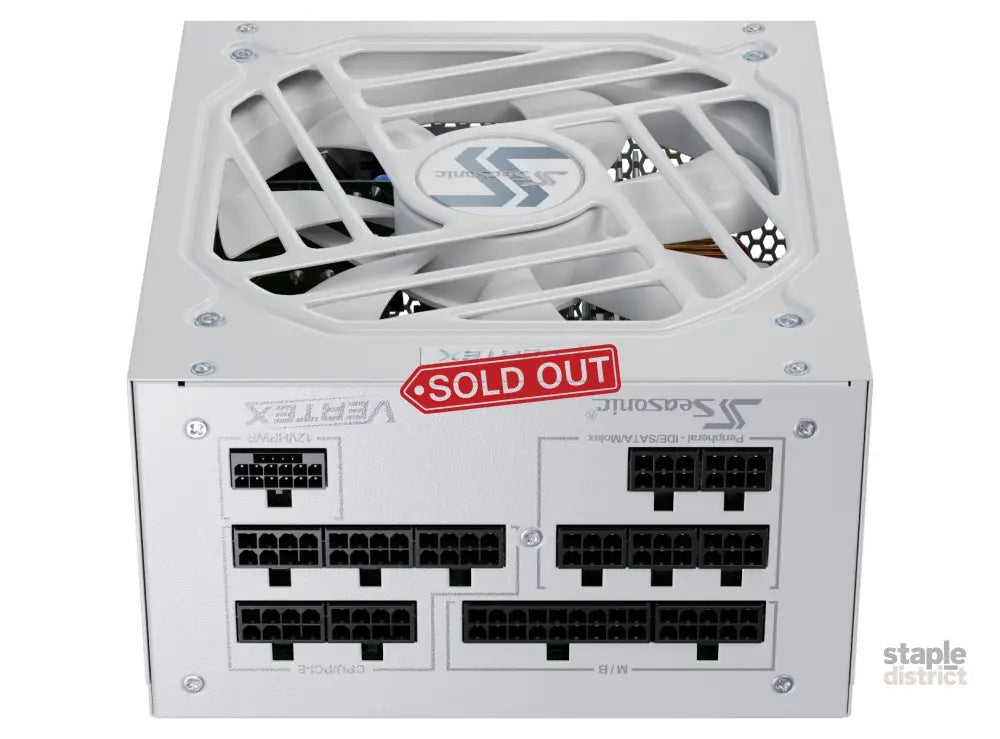

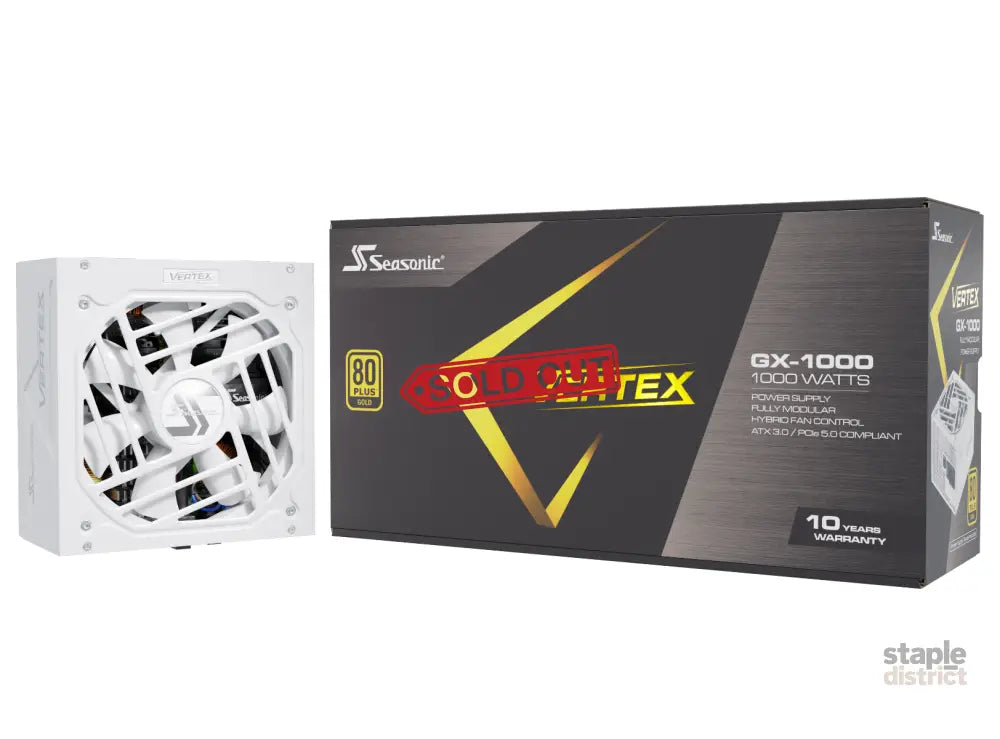

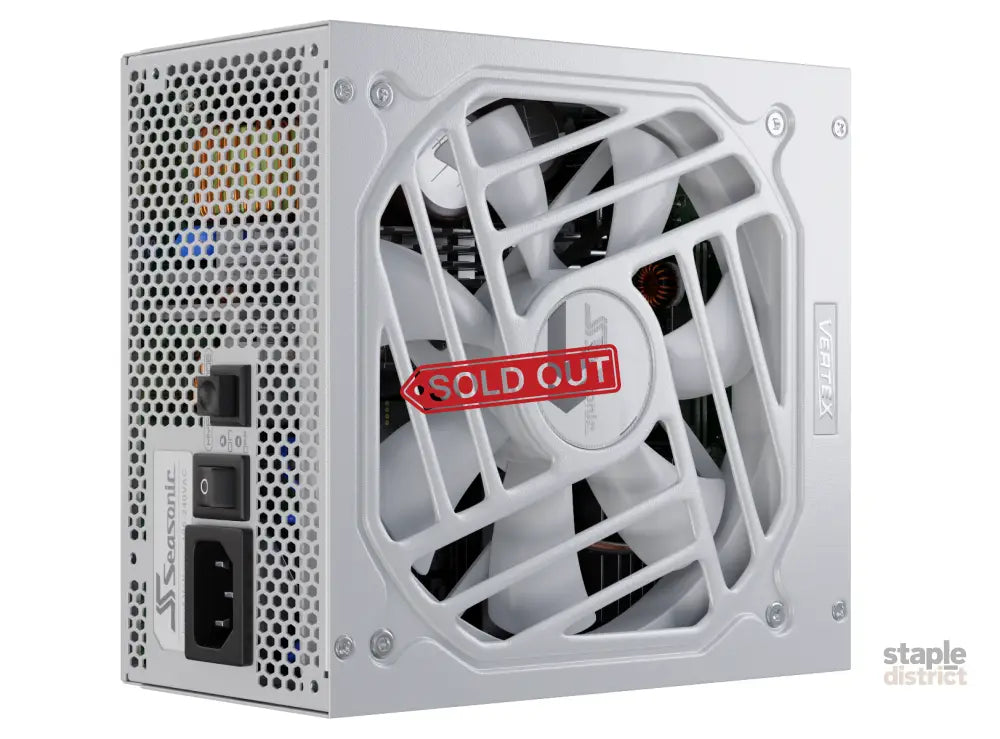

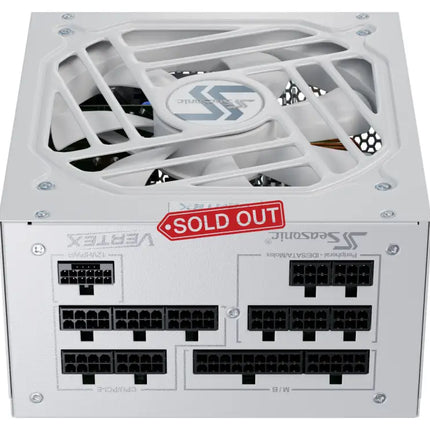

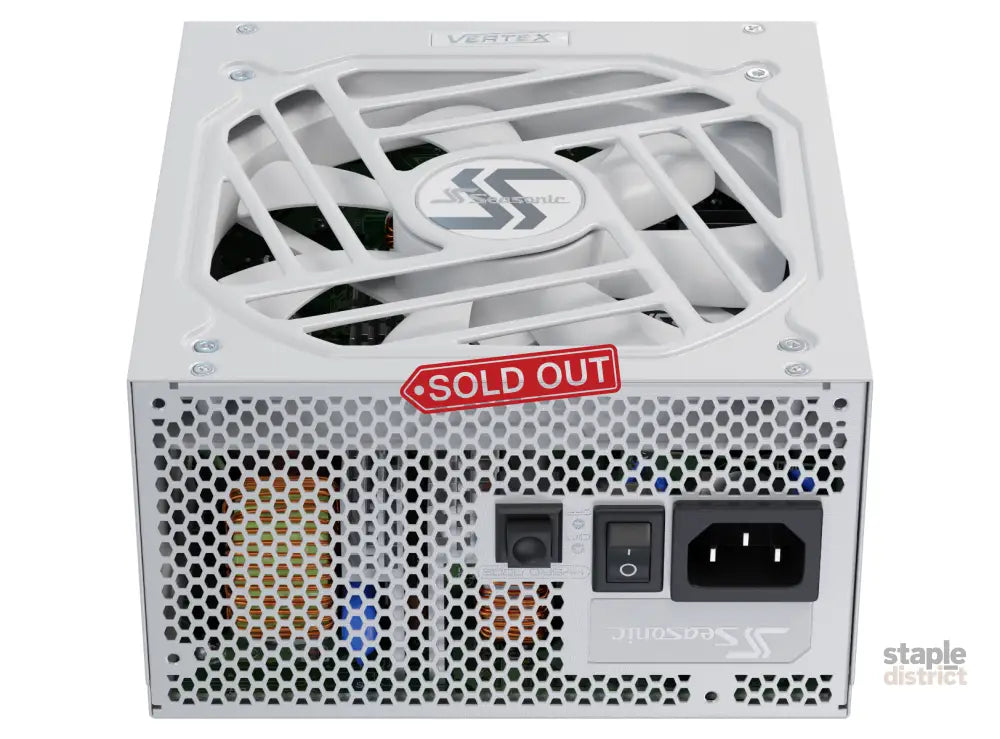

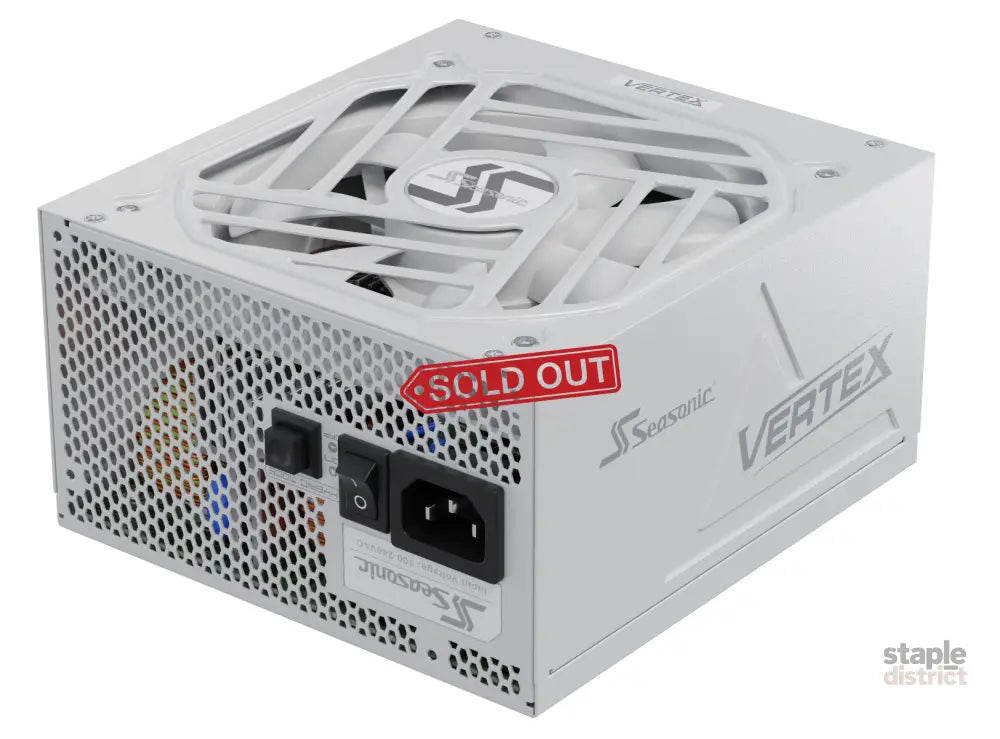

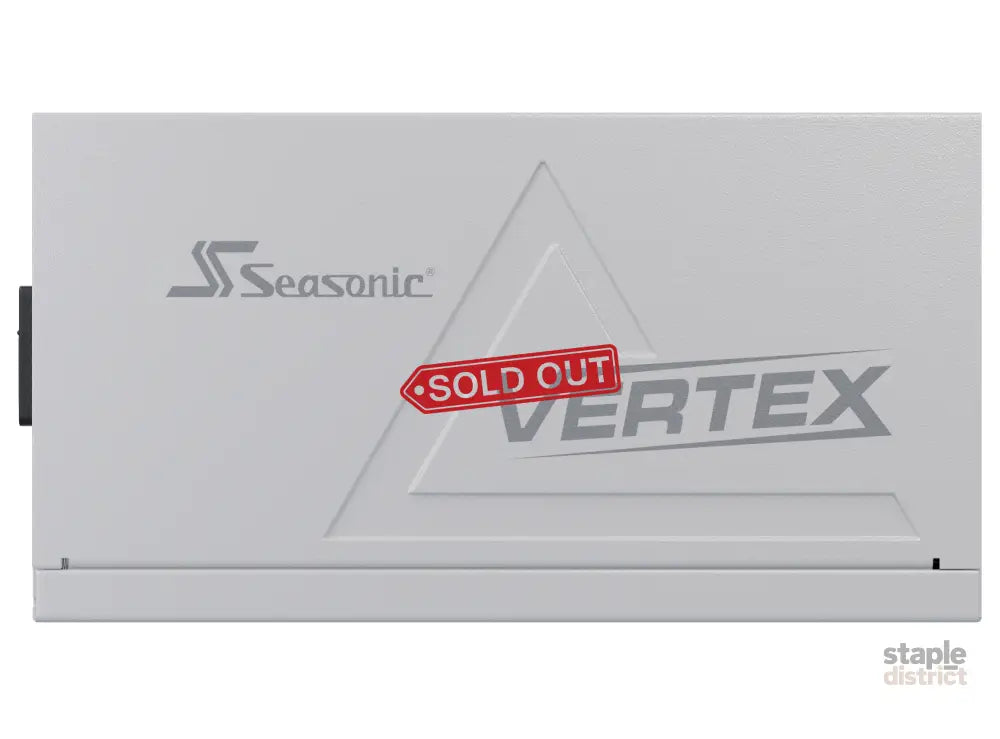

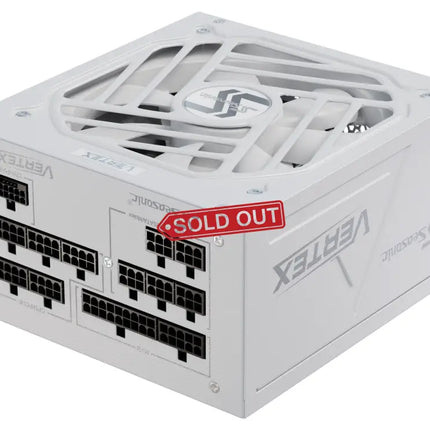

Seasonic VERTEX GX-1000 White 1000W ATX 3.0 Gold Modular PSU

Description

FEATURES
  • Super-High Efficiency, 80 PLUS® Gold Certified

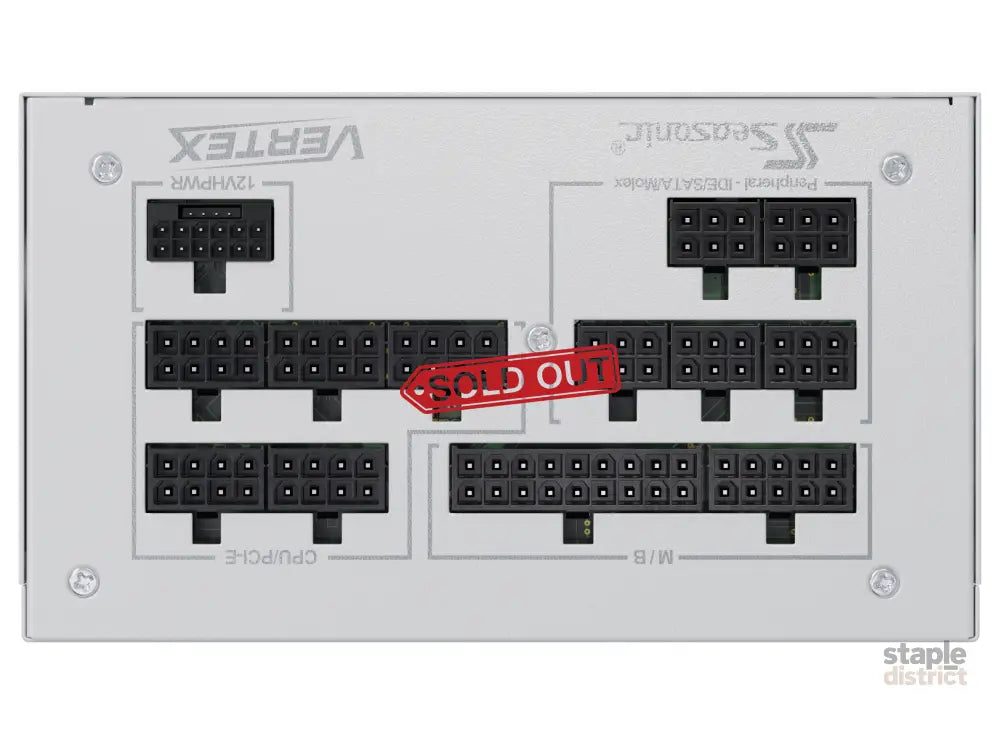

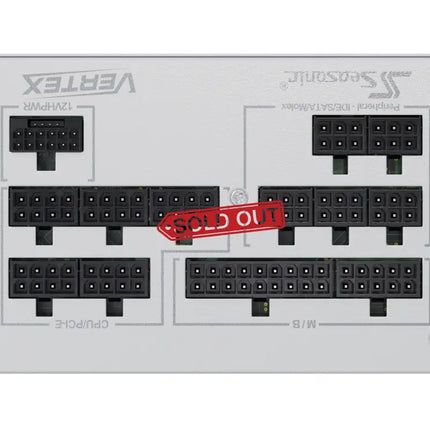

  • Fully Modular
  • ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)

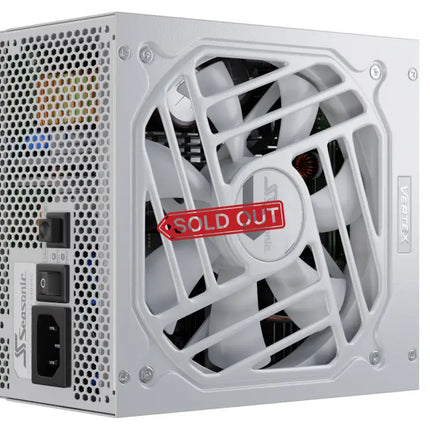

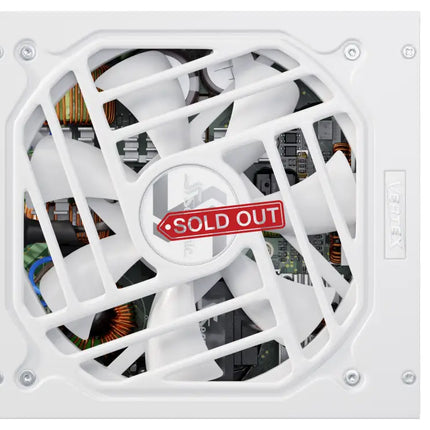

  • Top-Quality 135 mm Fluid Dynamic Bearing Fan
  • Premium Hybrid Fan Control
  • Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
  • Gold Plated High Current Terminal (MB, CPU and PCIe)

    • SPECIFICATIONS

    Technical Specifications

    80PLUS ®

    Gold

    Cybenetics Efficiency Level

    TBA

    Cybenetics Noise Level

    TBA

    Form Factor

    Intel ATX 12 V

    Dimensions

    160 mm (L) x 150 mm (W) x 86 mm (H)

    Fan Information

    Fan Size

    135 mm

    Fan Control

    Digital Fan Control

    Fan Bearing

    Fluid Dynamic Bearing

    Life Expectancy

    50,000 hours at 40 °C, 15 % - 65 % RH

    Cable Information

    Modularity

    Fully Modular

    Cable type

    Flat white cables

    Electrical Features

    Operating Temperature

    0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

    MTBF @ 25 °C, excl. fan

    100,000 hours

    AC Input

    Full Range

    Protection

    OPP, OVP, UVP, OCP, OTP, SCP

    Safety and Environmental

    Safety and EMC

    cTUVus, TUV, CB, CCC, BSMI, EAC, CE

    Environmental Compliance

    Energy Star, RoHS, WEEE, ErP Lot 6, REACH

    Warranty

    10 Years


    V28-PSUSEAVERTEXWHITEGX1000V28-PSUSEAVERTEXWHITEGX1000

    Power Output

    AC Input

    Voltage: 100 V - 240 V

    Current: 13 - 6.5 A

    Frequency: 50 Hz - 60 Hz

    DC Output

    Rail

    +3.3 V

    +5 V

    +12 V

    -12 V

    +5 VSB

    Maximum Power

    25 A

    25 A

    83 A

    0.3 A

    3 A

    125 W

    996 W

    3.6 W

    15 W

    Total continuous power

    1000 W
